Various modules

The following examples give a small insight into the fully automated modules manufactured by MARINE TECHNIK for various media:

  • Fresh water
  • HT + LT Cooling water
  • Sea water
  • Sludge


Please send us your requirements! We find a solution.

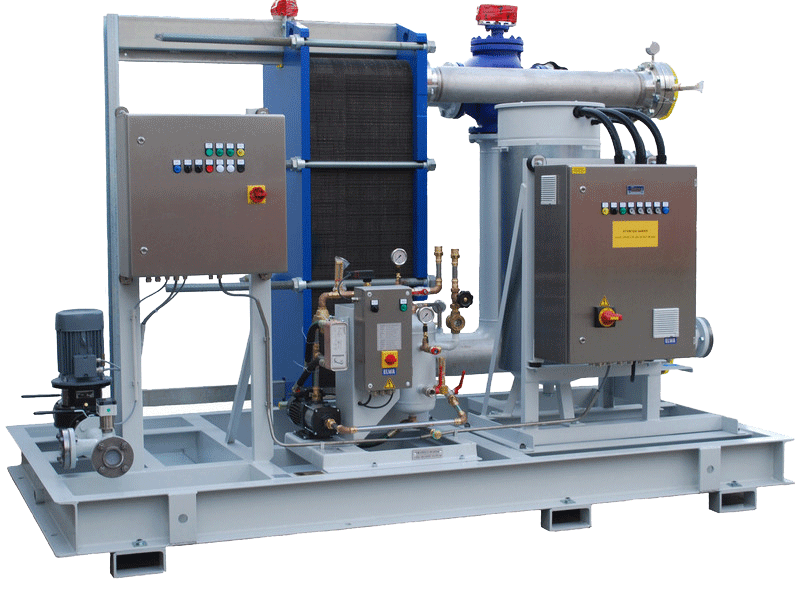

Central cooling module for Diesel engines

Combined Module consiting of:

  • Seawater Central Cooler, heat exchanged 6.172 kW
  • Nozzle Cooling Water Unit, 3,2 m³/h cooling water
  • Cooling Water Preheating Unit, electric heated 102 kW
  • Cooling Water Pump for MDO Cooler, capacity 19 m³/h

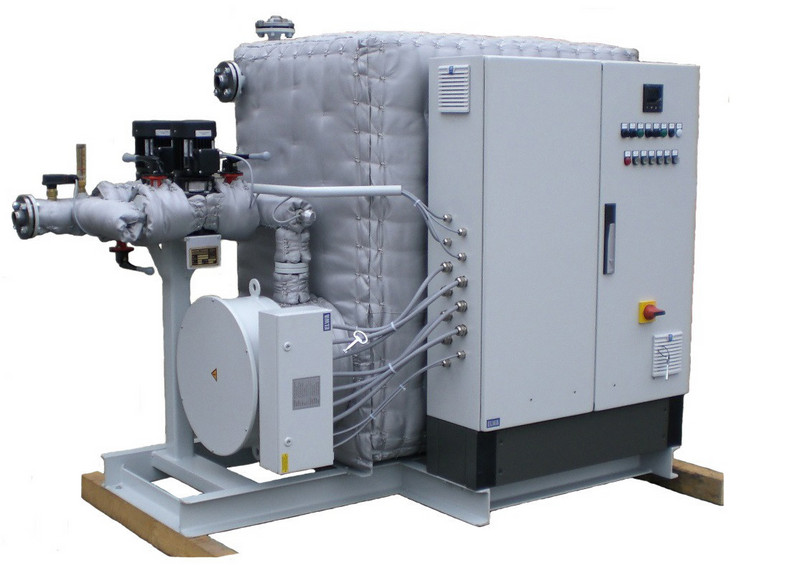

Fresh-water preheating unit

  • Electric Heater 157,5 kW (7 steps – each 22,5 kW)
  • 2 Centrifugal pumps, each 10 m³/h – 6 bar
  • Water tank, Volume 1,5 m³

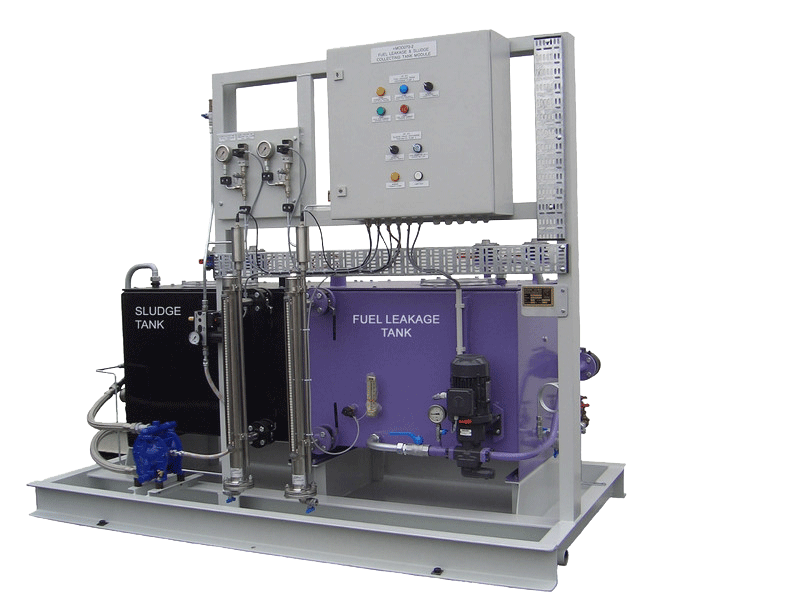

Fuel leakage & sludge collecting module

Two Units Combined to ONE Automatic controlled Module!

  1. Fuel Leakage Collecting Unit
    – Tank volume 300 ltr.
    – Level indication, local and analogue
    – Gear pump for fuel discharge

  2. Sludge Collecting Unit
    – Tank volume 300 ltr.
    – Level indication, local and analogue
    – Diaphragm pump for sludge discharge

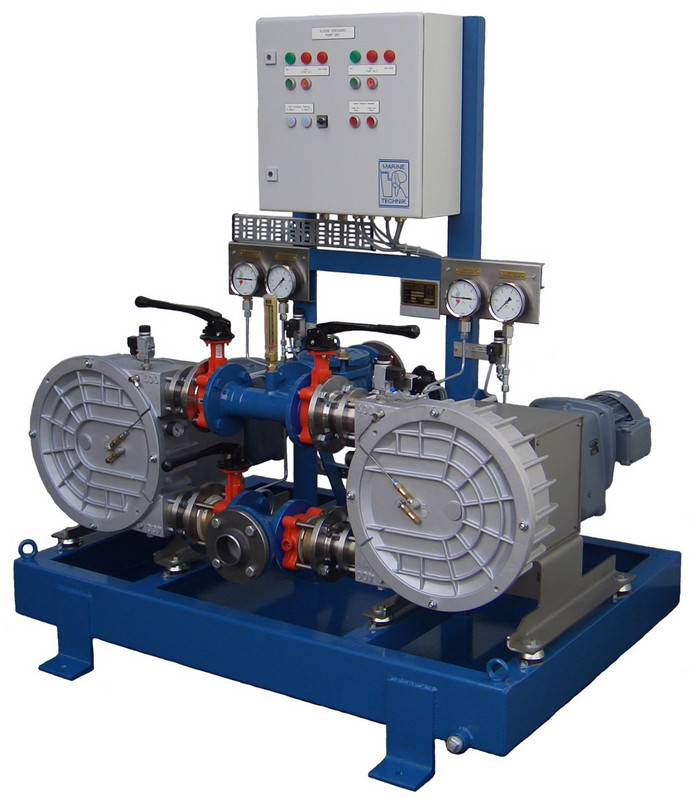

Sludge discharge pump module

Two Peristaltic pumps suction the sludge with particle sizes up to 8mm from the tank and discharge to vehicles.
